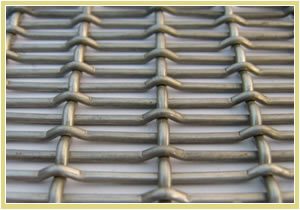

Crimped Wire Mesh
Wire Materials: low carbon steel wire, high cabon steel wire, stainless steel wire 302, 304, 304l, 310, 316, 316l, wire rod.
Crimped Wire Mesh Weaving Patterns: Weaving after crimping with all types (lock weaving, double crimped weaving, double lock weaving, smooth flat weaving of double wire, scalping weaving, triple lock weaving).
Crimped Wire Mesh General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
| Specification List of Crimped Wire Mesh |
| Wire Diameter mm |
Mesh |
|
Wire Diameter mm |
Mesh |
| 2.0--1.6 |
3 |
1.0--0.6 |
10 |
| 1.8--1.2 |
3.5 |
0.8--0.5 |
12 |
| 1.6--0.7 |
4 |
0.7--0.5 |
14 |
| 1.6--0.6 |
5 |
0.60--0.4 |
16 |
| 1.5--0.8 |
6 |
|
0.6--0.4 |
18 |
| 1.2--0.7 |
8 |
0.5--0.35 |
20 |
|
| |
| Specification List of Crimped Wire Mesh |
| Wire Diameter mm |
Mesh |
|
Wire Diameter mm |
Mesh |
| 1.5 |
10 |
1.9 |
20 |
| 1.6 |
10 |
2.0 |
20 |
| 1.5 |
12 |
1.9 |
25 |
| 1.6 |
12 |
2.0 |
25 |
| 1.5 |
15 |
|
2.5 |
20 |
| 1.6 |
15 |
2.6 |
20 |
| 1.9 |
10 |
2.5 |
25 |
| 2.0 |
10 |
2.6 |
25 |
| 1.9 |
12 |
2.5 |
30 |
| 2.0 |
12 |
2.6 |
30 |
| 1.9 |
15 |
3.0 |
25 |
| 2.0 |
15 |
3.2 |
25 |
| 1.9 |
18 |
3.0 |
30 |
| 2.0 |
18 |
3.2 |
30 |
|
| |
| Specification List of Crimped Wire Mesh |
| Wire Diameter mm |
Mesh mm |
|
Wire Diameter mm |
Mesh mm |
| 4.0 |
19×9 |
1.2 |
5.5×1.5 |
| 3.5 |
18×8 |
1.0 |
4.5×1.2 |
| 3.2 |
16×7 |
0.8 |
4.0×1.0 |
| 2.9 |
15×6 |
0.7 |
3.5×0.9 |
| 2.6 |
13.5×5 |
|
0.7 |
3.3×0.8 |
| 2.3 |
11.5×4 |
0.6 |
3.0×0.7 |
| 2.0 |
10×3.5 |
0.5 |
2.7×0.6 |
| 1.8 |
9×3 |
0.5 |
2.3×0.5 |
| 1.6 |
8×2.5 |
0.4 |
1.9×0.4 |
| 1.4 |
7×2 |
0.3 |
1.5×0.3 |
|
